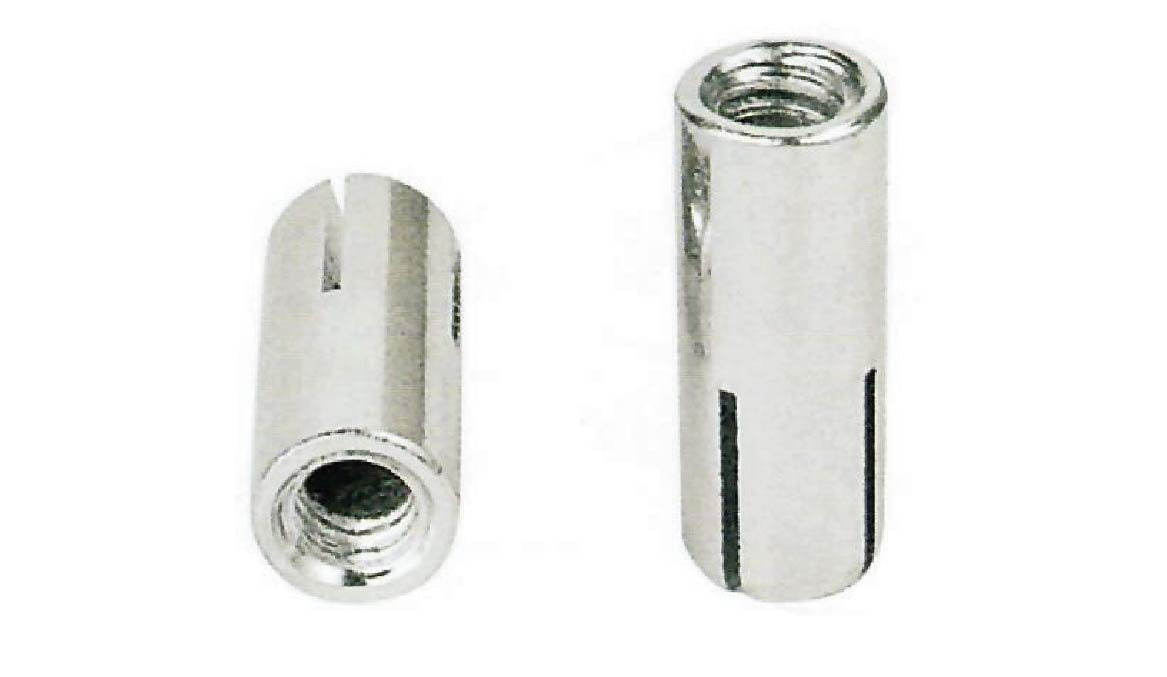

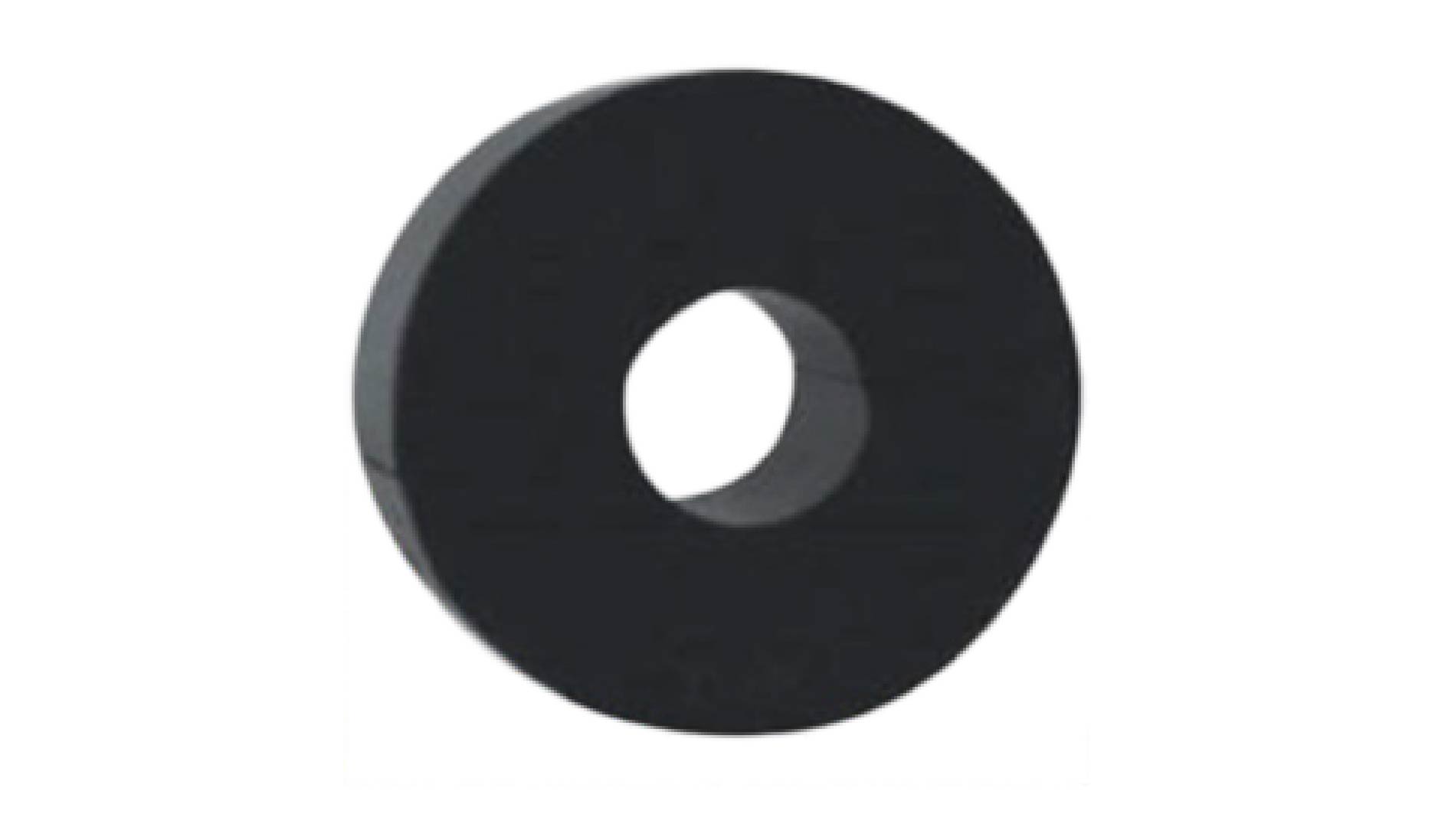

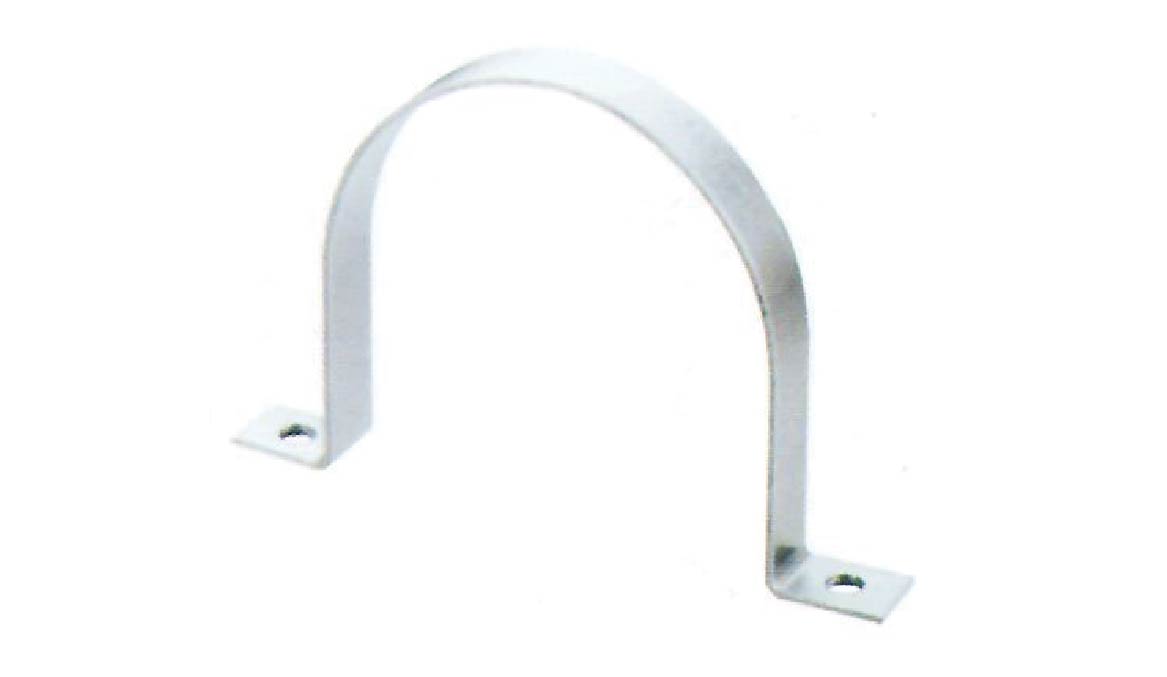

Amtar Trading Company is an authorized SureFix pipe hangers and supports supplier in Saudi Arabia. We stock UL & FM approved Clevis Hangers, Swivel Ring Hangers, U-Bolts, Heavy Duty U-Straps, Split Pipe Clamps, Threaded Rods, Strut Channels, Rubber Support Inserts, Beam Clamps and Drop-In Anchors for water, oil & gas, HVAC and fire fighting projects.
SureFix is a hallmark of excellence for premium-quality pipe hangers and support solutions, serving the water, oil, gas and HVAC sectors across Saudi Arabia and the Middle East. SureFix products are manufactured to the highest international standards and are approved by globally recognized agencies including UL and FM.
Sourced from cutting-edge manufacturing facilities across Europe, the USA, Japan, Korea and India, SureFix pipe supports embody precision, reliability and trust. Amtar Trading is your authorized SureFix supplier with ex-stock availability in Dammam and Al Khobar.
One of the region's largest importers of Building & Construction pipe support materials.
Engineering solutions complying with international & local standards for piping systems.
Advanced light steel solutions with Hot-Dip Galvanization to global standards.
Complete SureFix pipe hangers and supports range — all products UL & FM approved, ex-stock for fast supply to your project site in Saudi Arabia.
Quick reference data from the SureFix catalog for sizing pipe hangers and supports for your project.
| Pipe Size (inch) | Diameter D (mm) | Hanger Rod | Height H (mm) | Top Hole S (mm) | Cross Bolt | Max Load (Kg) |
|---|---|---|---|---|---|---|
| 1" | 34 | M10 | 76 | 11 | M8 | 350 |
| 1¼" | 42 | M10 | 87 | 11 | M8 | 350 |
| 1½" | 48 | M10 | 97 | 11 | M8 | 350 |
| 2" | 60 | M10 | 114 | 11 | M8 | 350 |
| 2½" | 75 | M12 | 142 | 13 | M10 | 780 |
| 3" | 89 | M12 | 165 | 13 | M10 | 780 |
| 3½" | 102 | M12 | 190 | 13 | M10 | 780 |
| 4" | 115 | M12 | 202 | 13 | M10 | 780 |
| 5" | 142 | M12/M16 | 231 | 13/17 | M12 | 1300 |
| 6" | 168 | M12/M16 | 278 | 13/17 | M12 | 1300 |
| 8" | 219 | M12/M16 | 336 | 13/17 | M12 | 2100 |
| Pipe Size | Max Load (lbs) | Max Load (kg) | Rod Size (IN) | Rod Size (MM) | Dim A (IN) | Dim A (MM) |
|---|---|---|---|---|---|---|
| ½" | 300 | 136 | 3/8 | M10 | 2 5/6 | 72 |
| ¾" | 300 | 136 | 3/8 | M10 | 3 | 76 |
| 1" | 300 | 136 | 3/8 | M10 | 3 5/7 | 94 |
| 1¼" | 300 | 136 | 3/8 | M10 | 4 | 99 |
| 1½" | 300 | 136 | 3/8 | M10 | 4 2/7 | 108 |
| 2" | 1000 | 454 | 3/8 | M10 | 5¼ | 141 |
| 3" | 1000 | 454 | 3/8 | M10 | 6 3/8 | 162 |
| 4" | 1100 | 499 | 3/8 | M10 | 7 2/3 | 195 |
| 5" | 1100 | 499 | ½ | M12 | 9 | 229 |
| 6" | 1250 | 567 | ½ | M12 | 10½ | 267 |
| 8" | 1250 | 567 | ½ | M12 | 12½ | 318 |
| Pipe Size | Rod Size (A) | Width W (MM) | Length L (MM) | Thickness T (MM) | Max Load (lbs) | Max Load (kg) |
|---|---|---|---|---|---|---|
| ½" | 3/8 / M10 | 21 | 65 | 50 | 6500 | 2948 |
| ¾" | 3/8 / M10 | 27 | 77 | 50 | 6500 | 2948 |
| 1" | 3/8 / M10 | 34 | 85 | 50 | 6500 | 2948 |
| 1½" | 3/8 / M10 | 48 | 100 | 50 | 6500 | 2948 |
| 2" | ½ / M12 | 60 | 127 | 50 | 9500 | 4309 |
| 3" | ½ / M12 | 115 | 165 | 50 | 9500 | 4309 |
| 4" | ½ / M12 | 140 | 190 | 50 | 9500 | 4309 |
| 6" | 5/8 / M16 | 220 | 295 | 75 | 18000 | 8165 |
| 8" | 5/8 / M16 | 219 | 370 | 100 | 28000 | 12701 |
| 12" | 7/8 / M20 | 324 | 455 | 100 | 28000 | 12701 |
| 18" | 1 / M24 | 457 | 605 | 100 | 40000 | 18144 |
| 24" | 1 / M24 | 610 | 710 | 100 | 40000 | 18144 |

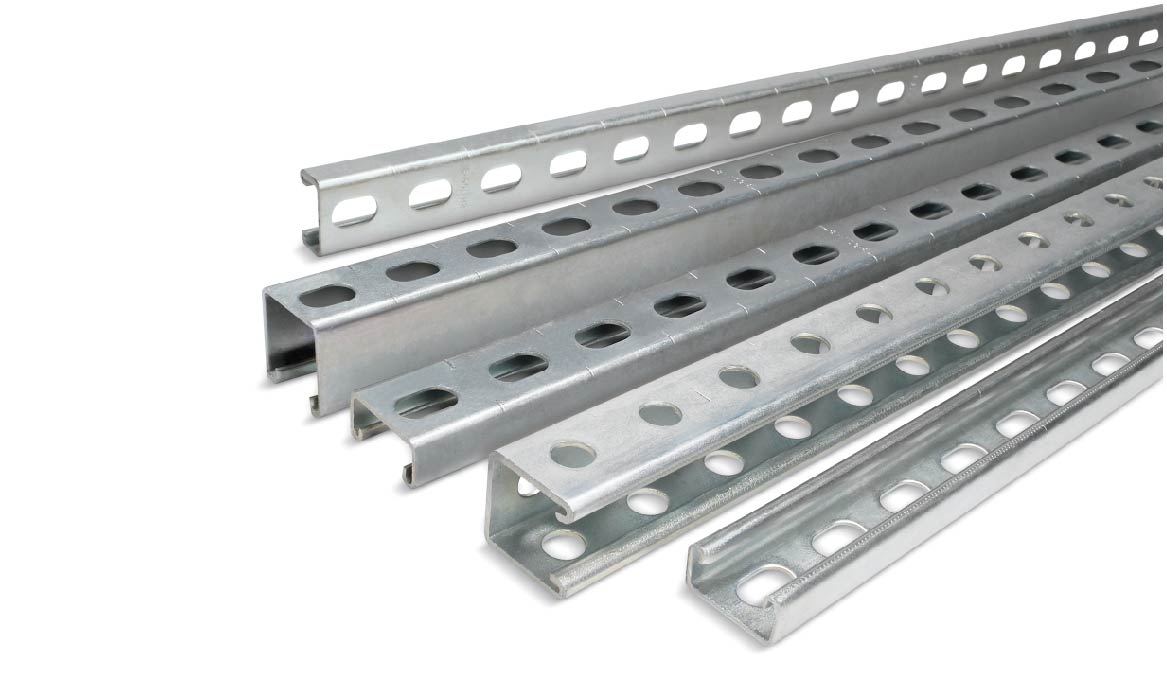

| Product Code | Width (mm) | Height (mm) | Thickness (mm) | Allowable Bending (kN/cm²) | Moment of Inertia xx (cm⁴) | Min Section Modulus (cm³) |
|---|---|---|---|---|---|---|
| 21-1.5 | 41 | 21 | 1.5 | 21.82 | 0.70 | 0.60 |
| 41-1.5 | 41 | 41 | 1.5 | 21.82 | 3.87 | 1.76 |
| 21-2.0 | 41 | 21 | 2.0 | 21.82 | 0.88 | 0.75 |
| 41-2.0 | 41 | 41 | 2.0 | 21.82 | 4.59 | 2.18 |
| 21-2.5 | 41 | 21 | 2.5 | 21.82 | 1.03 | 0.89 |
| 41-2.5 | 41 | 41 | 2.5 | 21.82 | 5.87 | 2.72 |

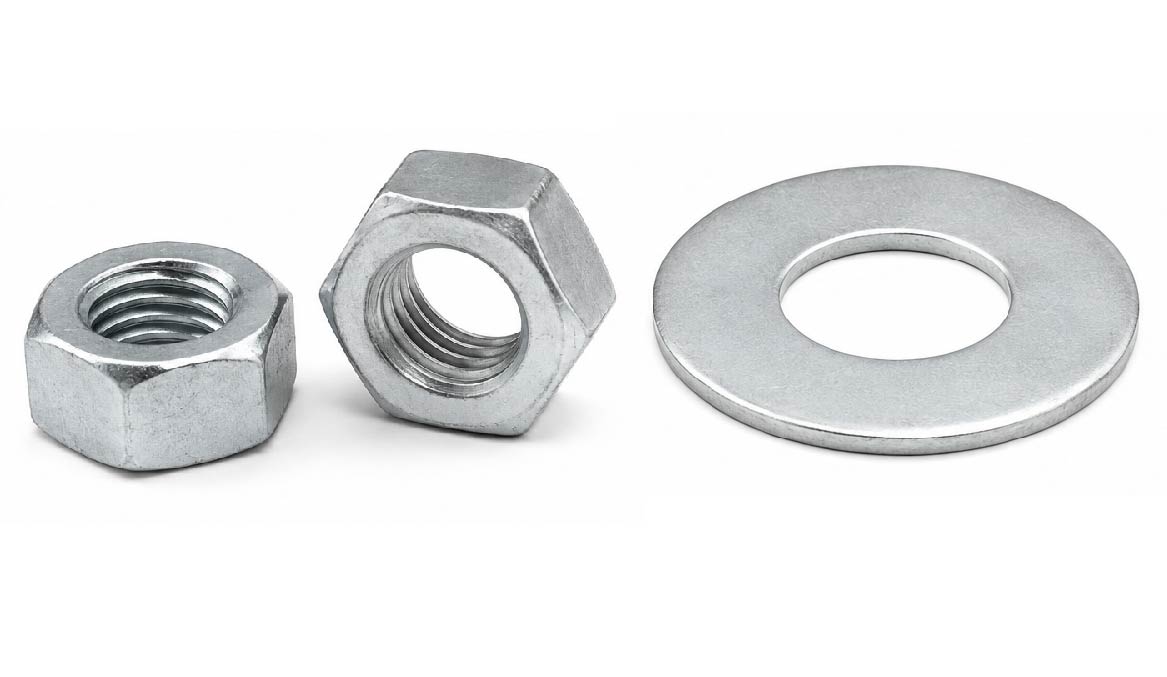

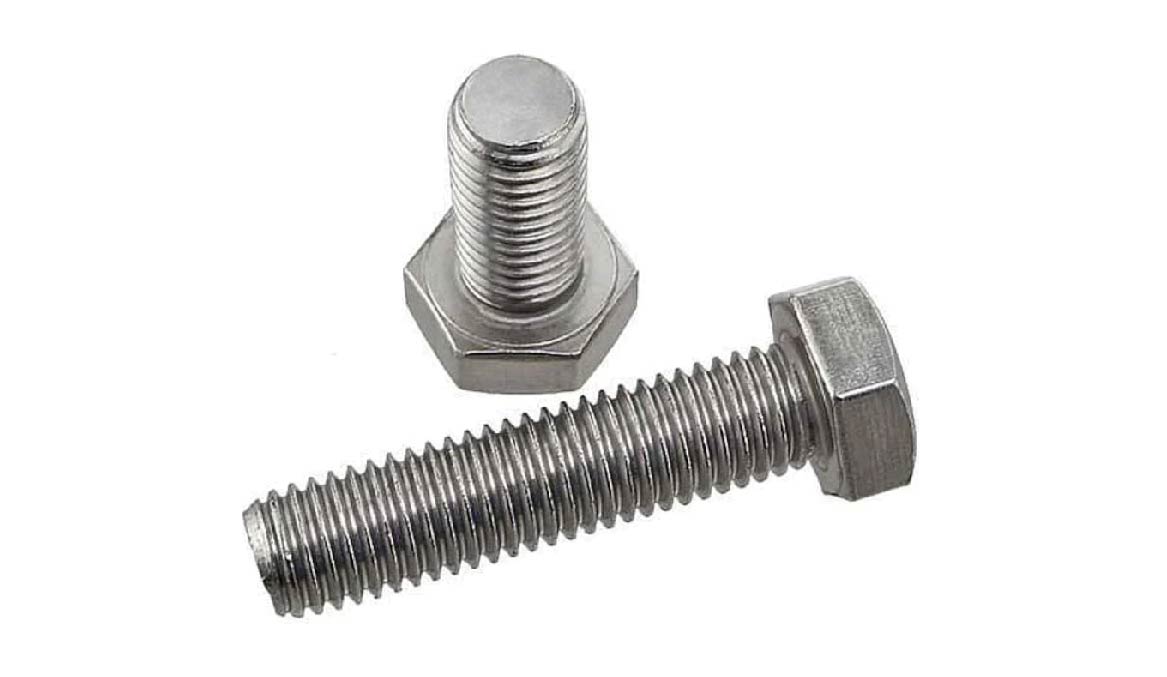

Complete accessories range to complement your pipe hanger and support installations.
SureFix pipe hangers carry UL (Underwriters Laboratories) and FM (Factory Mutual) listings for fire protection equipment, complying with ANSI / CAN/UL 203:2020, ASTM A653M, NFPA 13 and UL 2043. Sizes 1" to 8".
Manufactured by Vikas Industries — ISO 9001:2015 certified (Certificate No. 24MEQSH46) for manufacturing and export of building hardware, wrought iron components, hangers, clamps and pipe support systems.
All SureFix products comply with Federal Specification WW-H-171E, MSS SP-69, MSS SP-58, ASTM B633 (electro galvanized), ASTM A123 (hot-dip galvanized) and DIN 4109 for acoustic pipe clamping.

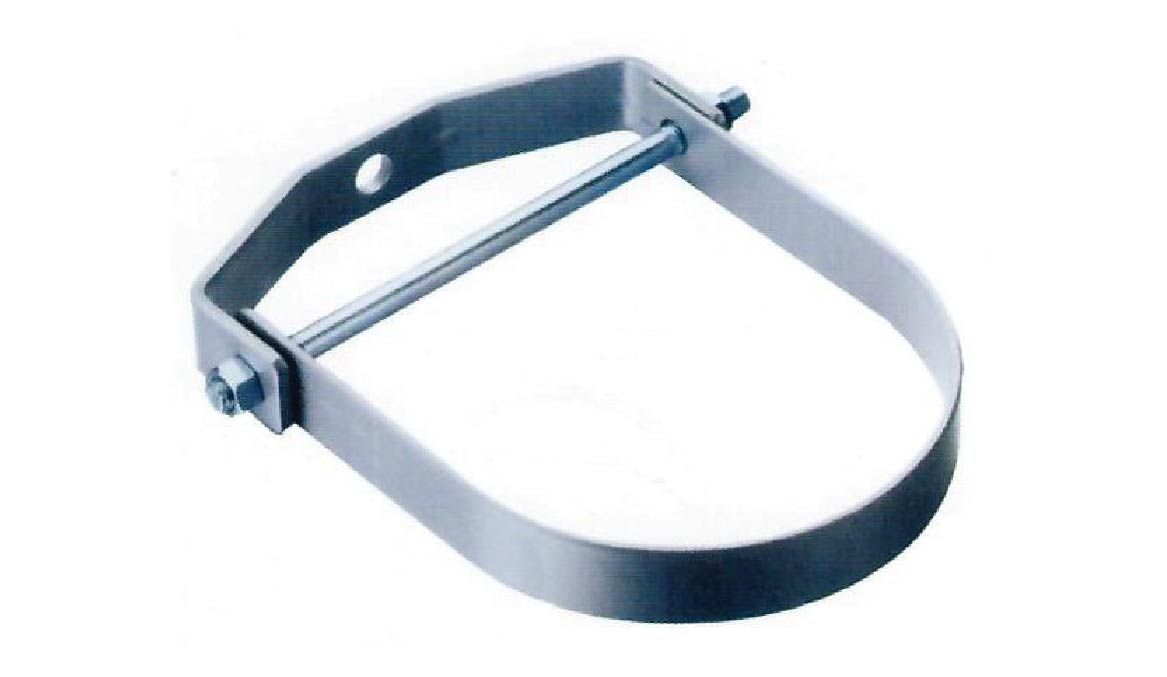

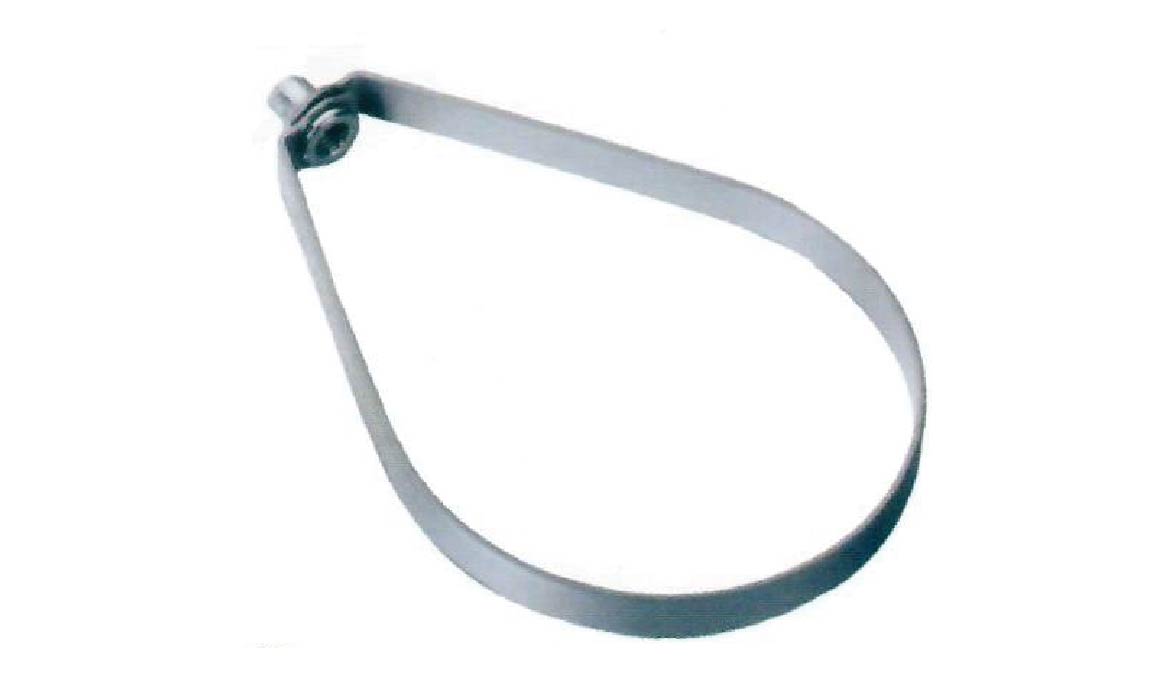

UL/FM listed clevis and swivel ring hangers for NFPA 13 wet-pipe, dry-pipe and pre-action sprinkler systems.

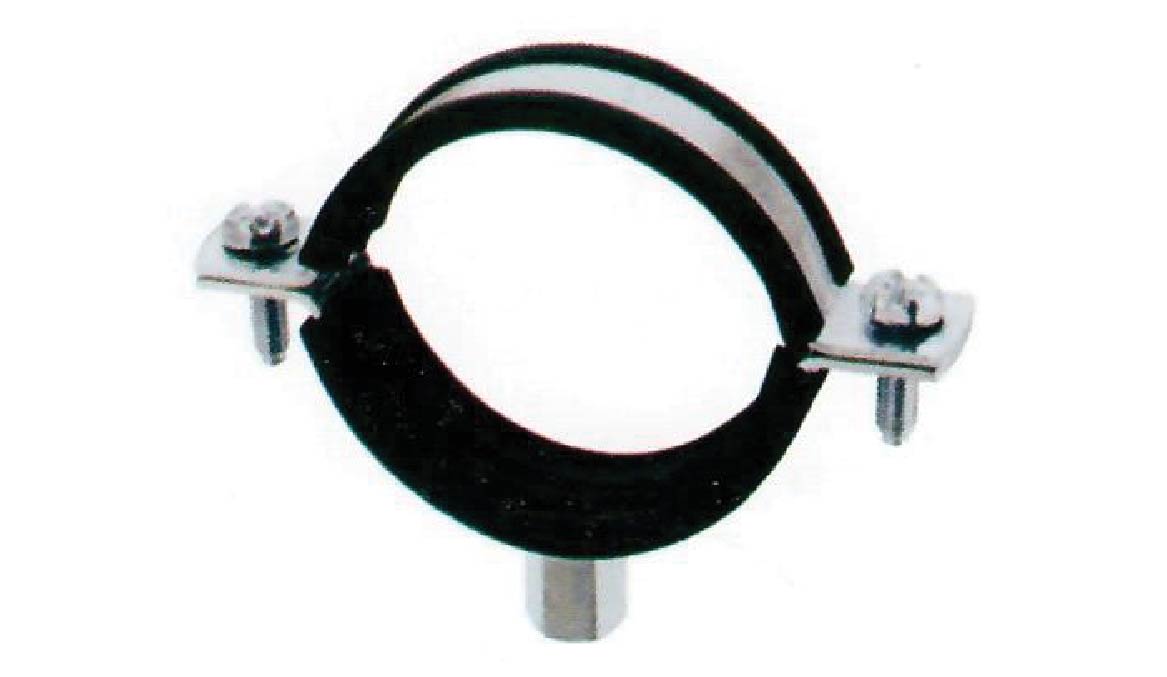

Split pipe clamps with EPDM rubber for acoustic isolation of chilled water and condenser water piping.

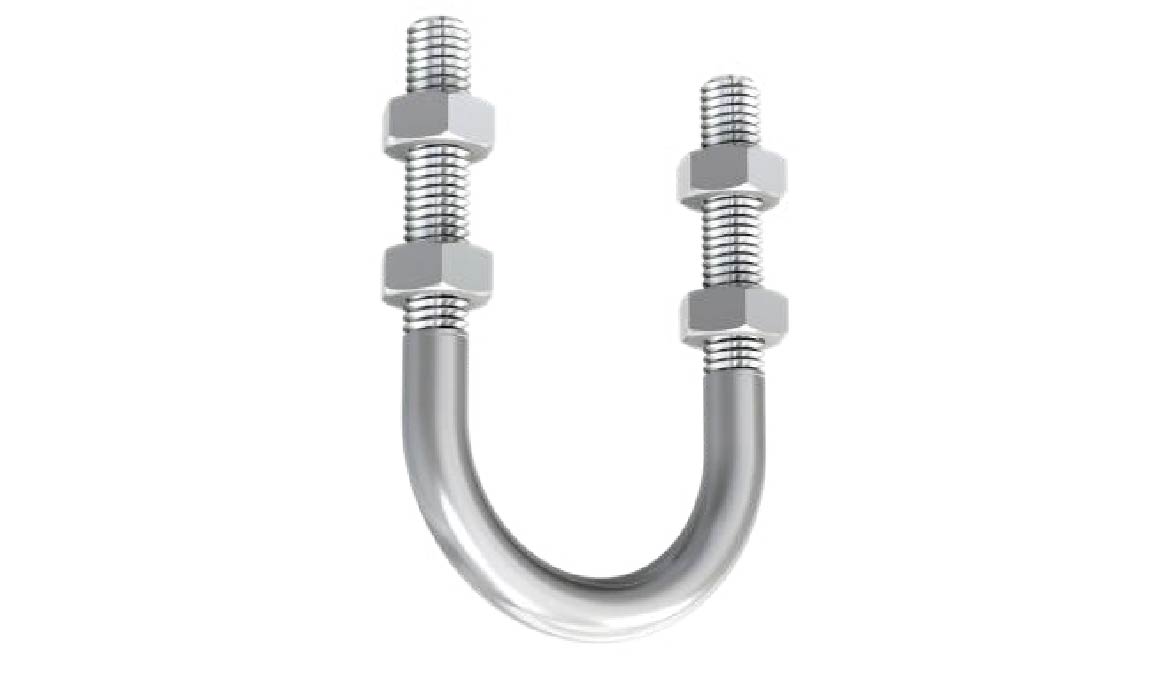

Heavy-duty U-bolts and U-straps for large-bore process piping support in refineries and petrochemical plants.
Strut channel and threaded rod systems for municipal water treatment, pumping stations and distribution.
Complete pipe support systems for MEP works in commercial towers, hotels, hospitals and residential compounds.

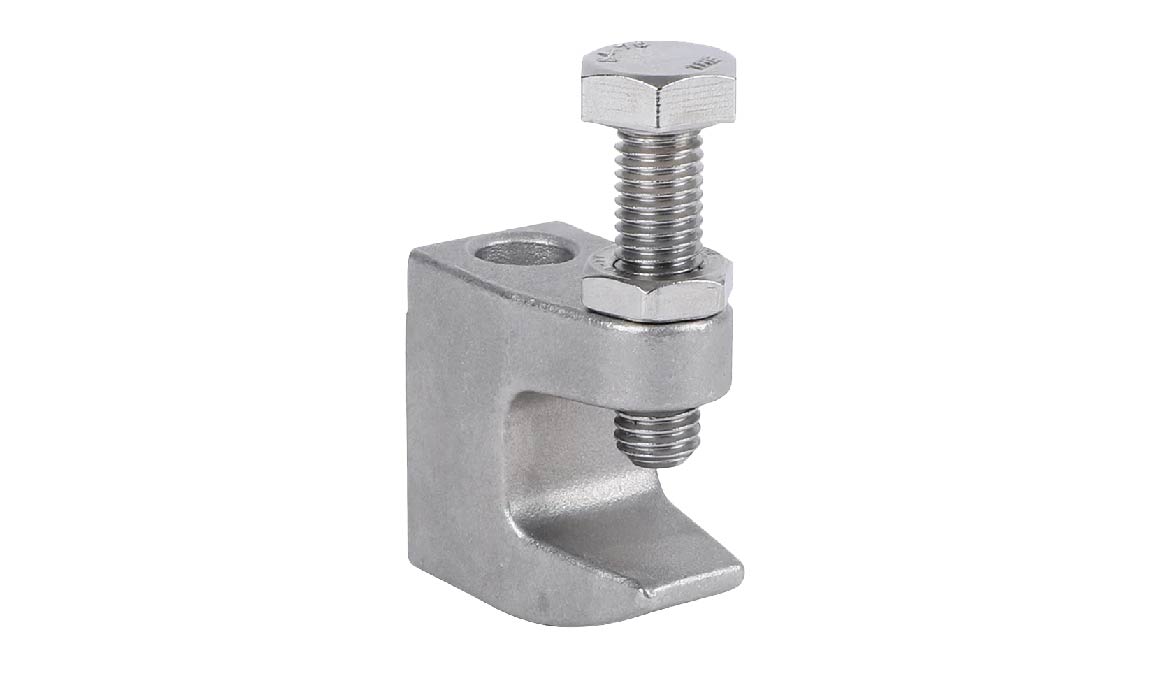

High-load U-bolts (up to 40,000 lbs) and beam clamps for steam and process piping in power generation.
Bulk supply of pipe hangers and supports to major infrastructure and NEOM mega-project construction teams.

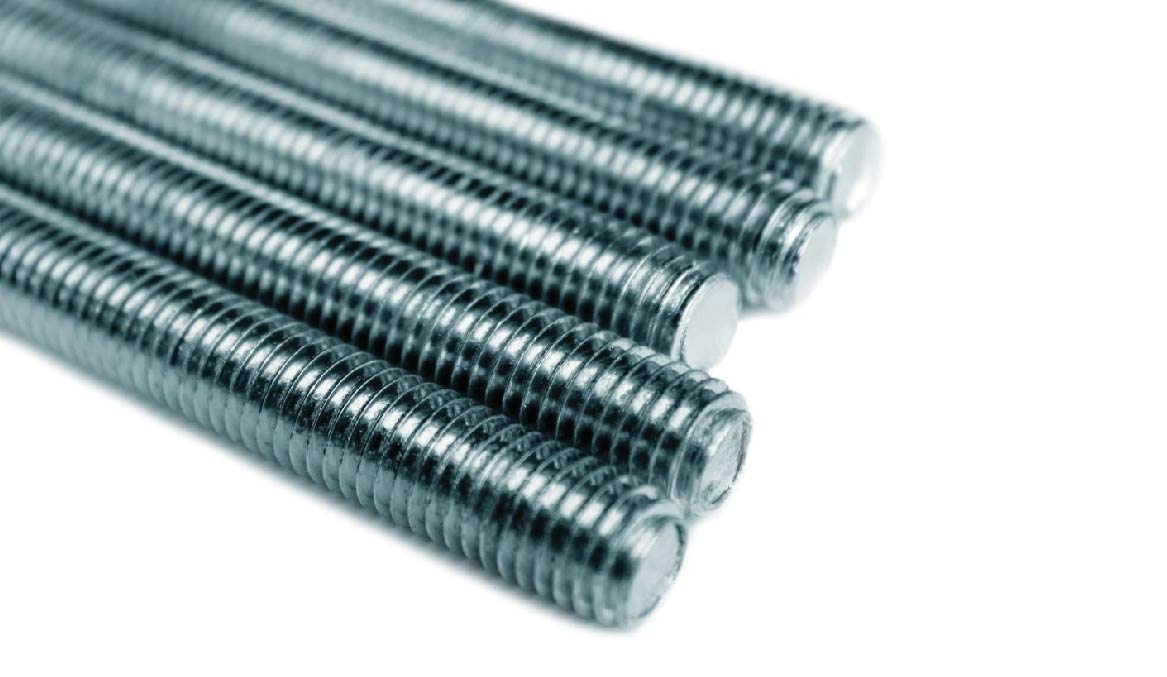

Factory and warehouse overhead piping support systems using strut channel and all-thread rod assemblies.
